Specifying mixed effects in lme4

Description of trial

• $n$ individuals ($i=1,2,..,n$) are measured $m$ times ($j=1,2,...,m$) pre-intervention (denoted $y_{ij}^{pre}$) and post-intervention (denoted $y_{ij}^{post}$)

Underlying probability model

Notation

• ${\beta }_0$ fixed effect intercept
• ${\beta }_1$ fixed effect of intervention
• $ϵ\sim \mathcal{N}(\mu =0,sd={\sigma }_0)$, for reasons of better legibility sub- and superscript are omitted here
• $b_{1,i}$ random effect baseline, $b_{1,i}\sim \mathcal{N}(\mu =0,sd={\sigma }_1)$
• $b_{2,i}$ random effect of intervention, $b_{2,i}\sim \mathcal{N}(\mu =0,sd={\sigma }_2)$

Parameters of the model to be estimated

• ${\beta }_0$, ${\beta }_1$, ${\sigma }_0$, ${\sigma }_1$ and ${\sigma }_2$

Model equations

• Measurement pre intervention: $$\begin{array}{r}{y}_{ij}^{pre}={\beta }_0+b_i+{ϵ}_{ij}^{pre}\end{array}$$
• Measurement post-intervention: $$\begin{array}{r}{y}_{ij}^{post}={\beta }_0+{\beta }_1+b_{1,i}+b_{2,i}+{ϵ}_{ij}^{post}\end{array}$$

Simulate data

# size of sample:
n <- 20
m <- 5

# model parameters:
beta_0 <- 0
beta_1 <- 1
sigma_0 <- 2
sigma_1 <- 1
sigma_2 <- 5

# construct data:
patients <- tibble(patient_id = 1:n,
                   patient_re = rnorm(n, 0, sigma_1),
                   treatment_re = rnorm(n, 0, sigma_2))

dat <- expand_grid(patients,
                   replicate = 1:m,
                   timepoint = c('pre', 'post'))

dat <- dat |>
  mutate(y = beta_0 +
           patient_re +
           ifelse(timepoint == 'post', treatment_re + beta_1, 0) +
           rnorm(n * m * 2, 0, sigma_0))

# make timepoint a factor to get order in plots right:
dat <- dat |>
  mutate(timepoint = factor(timepoint, levels = c('pre', 'post')))

Tabular characteristics

dat |>
  group_by(timepoint) |>
  summarize(mean = mean(y)) |>
  kable()

timepoint	mean
pre	0.1868025
post	1.1930561

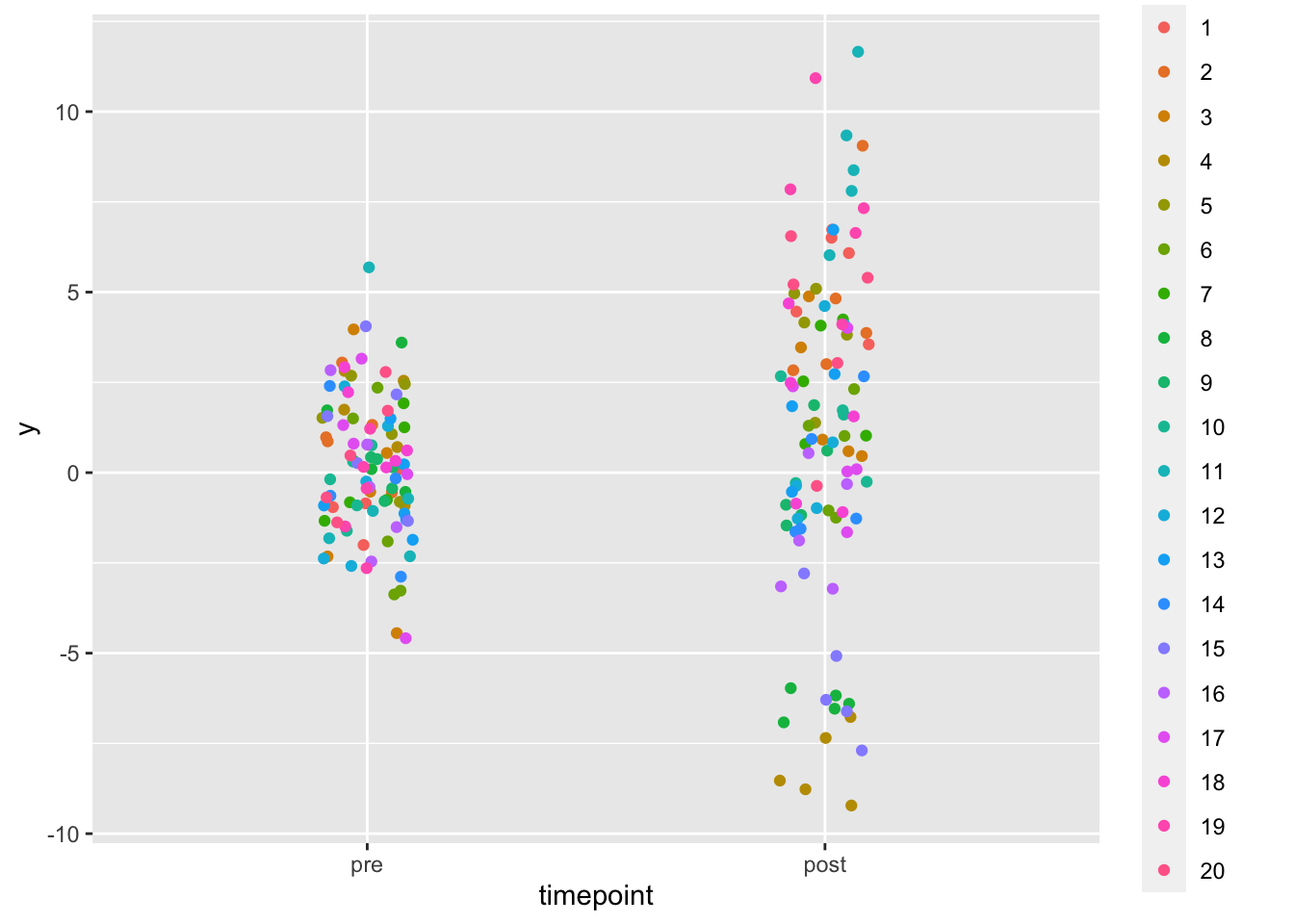

Visualize data

if(n < 1e2) {
  dat |>
    ggplot(aes(timepoint, y, col = factor(patient_id))) +
    geom_jitter(width = 0.1, height = 0) + labs(color = 'Patient ID')
}

Fit model

Linear model

# linear model to get beta_1 and beta_2
(fm_lm <- lm(y ~ timepoint, data = dat)) |> summary()

Call:
lm(formula = y ~ timepoint, data = dat)

Residuals:
     Min       1Q   Median       3Q      Max
-10.4127  -1.5931   0.0072   2.0727  10.4653

Coefficients:
              Estimate Std. Error t value Pr(>|t|)
(Intercept)     0.1868     0.3489   0.535   0.5930
timepointpost   1.0063     0.4934   2.039   0.0427 *
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 3.489 on 198 degrees of freedom
Multiple R-squared:  0.02057,   Adjusted R-squared:  0.01563
F-statistic: 4.159 on 1 and 198 DF,  p-value: 0.04274

Mixed effects model with correlation between (Intercept) and timepointpost

(fm_lmer <- lmer(y ~ timepoint + (timepoint | patient_id), data = dat))

boundary (singular) fit: see help('isSingular')

Linear mixed model fit by REML ['lmerMod']
Formula: y ~ timepoint + (timepoint | patient_id)
   Data: dat
REML criterion at convergence: 888.5308
Random effects:
 Groups     Name          Std.Dev. Corr
 patient_id (Intercept)   0.3268
            timepointpost 4.5307   -1.00
 Residual                 1.9086
Number of obs: 200, groups:  patient_id, 20
Fixed Effects:
  (Intercept)  timepointpost
       0.1868         1.0063
optimizer (nloptwrap) convergence code: 0 (OK) ; 0 optimizer warnings; 1 lme4 warnings

Mixed effects model without correlation between (Intercept) and timepointpost

• The specifications I tried seem almost right, but not quite:

(fm_lmer <- lmer(y ~ timepoint + (timepoint - 1 || patient_id), data = dat))

Linear mixed model fit by REML ['lmerMod']
Formula: y ~ timepoint + ((0 + timepoint | patient_id))
   Data: dat
REML criterion at convergence: 888.5308
Random effects:
 Groups     Name          Std.Dev. Corr
 patient_id timepointpre  0.3268
            timepointpost 4.2038   -1.00
 Residual                 1.9086
Number of obs: 200, groups:  patient_id, 20
Fixed Effects:
  (Intercept)  timepointpost
       0.1868         1.0063

(fm_lmer <- lmer(y ~ timepoint + (timepoint - 1 | patient_id), data = dat))

Linear mixed model fit by REML ['lmerMod']
Formula: y ~ timepoint + (timepoint - 1 | patient_id)
   Data: dat
REML criterion at convergence: 888.5308
Random effects:
 Groups     Name          Std.Dev. Corr
 patient_id timepointpre  0.3268
            timepointpost 4.2038   -1.00
 Residual                 1.9086
Number of obs: 200, groups:  patient_id, 20
Fixed Effects:
  (Intercept)  timepointpost
       0.1868         1.0063

(fm_lmer <- lmer(y ~ timepoint + (1 | patient_id) + (timepoint - 1 | patient_id), data = dat))

boundary (singular) fit: see help('isSingular')

Linear mixed model fit by REML ['lmerMod']
Formula: y ~ timepoint + (1 | patient_id) + (timepoint - 1 | patient_id)
   Data: dat
REML criterion at convergence: 888.5308
Random effects:
 Groups       Name          Std.Dev. Corr
 patient_id   (Intercept)   0.0000
 patient_id.1 timepointpre  0.3268
              timepointpost 4.2039   -1.00
 Residual                   1.9086
Number of obs: 200, groups:  patient_id, 20
Fixed Effects:
  (Intercept)  timepointpost
       0.1868         1.0063
optimizer (nloptwrap) convergence code: 0 (OK) ; 0 optimizer warnings; 1 lme4 warnings

(fm_lmer <- lmer(y ~ timepoint + (1 | patient_id) + (timepoint + 0 | patient_id), data = dat))

boundary (singular) fit: see help('isSingular')

Linear mixed model fit by REML ['lmerMod']
Formula: y ~ timepoint + (1 | patient_id) + (timepoint + 0 | patient_id)
   Data: dat
REML criterion at convergence: 888.5308
Random effects:
 Groups       Name          Std.Dev. Corr
 patient_id   (Intercept)   0.0000
 patient_id.1 timepointpre  0.3268
              timepointpost 4.2039   -1.00
 Residual                   1.9086
Number of obs: 200, groups:  patient_id, 20
Fixed Effects:
  (Intercept)  timepointpost
       0.1868         1.0063
optimizer (nloptwrap) convergence code: 0 (OK) ; 0 optimizer warnings; 1 lme4 warnings
